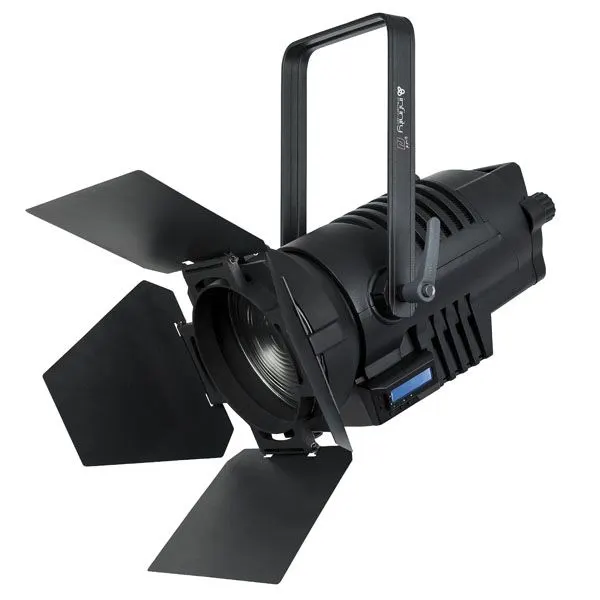

Highlite Infinity TF-300 Daylight

Categories:
More from
SKU: 200201
DESCRIPTION
TECHNICAL INFORMATION
DESCRIPTION

The new standard for Theatre illumination, the infinity Signature series. The tools you have always wanted to create beautiful, energy efficient lighting for your theatre, church, studio or school. These luminaires utilise the latest LED technology with European software wile having operational and lens options familiar to any entertainment technician. To create this new range of theatre lights, we have found an excellent partner in Robert Juliat

To get a more natural feel to any film or video the light used should be of the highest possible quality with a matching consistent colour temperature. Due to these two characteristics it is able to light areas without showing any overlap or set boundaries. With the Signature TF-300 5700K Fresnel version spreading daylight with a high CRI of over 95 is no issue. This high value is possible due to selecting Lumiled LEDs, extensive measuring and calibration of the unit and using intuitive software. The zoom focus mechanism is easy and intuitive, both manually and motorized by dmx applicable between 15° to 50°.

  • Delivers the performance of 1kW Tungsten halogen unit
  • 300W, 5700K Custom designed Lumiled Engine
  • Manual and motorized 15° -50° zoom control
  • CRI > 95 Consistently
  • Consistent colour temperature regardless of intensity
  • 16 bit Intelligent high resolution virtual dimming
  • Factory calibrated
  • RDM allowing for remote setting and recall of information
  • Custom design silent cooling system
  • Neutrik connections



LED Engine
Source 300W Lumiled White LED engine using custom designed array.
Optical Information
Output 4000lm
Light quality >95 CRI Consistently
Colour Temperature 5700K
Beam Angles 15°-50°
Zoom Manual and motorized
Electrical Specifications
Voltage 100 -240 volts AC.
Frequency 50/60 Hz
Power Factor 0,97
Consumption 300W max
Environmental Specifications
Ambient Temp 0°C ~40°C (operating) / -10°C ~45°C (start-up)
IP Rating IP 20 indoor use only
Conformity CE Mark
Control Specifications
Control On board Menu, RDM, DMX512
Fan mode Silent, Auto, Full
DMX Channels Dimmer Mode, 1Ch
Basic Mode, 3Ch
Pro mode, 5Ch
Mechanical Specifications
Power connections Neutrik powerCON in- and through
Data connections Neutrik 3&5p DMX in- and through
Pole operated Available as option
Construction Machined Aluminium, sheet metal, moulded engineering grade plastics.
Colour Black
Weight 8,2Kg
